Bohning Fletching Multi-Fletcher Jig 3 & 4 Fletch 601055

Description

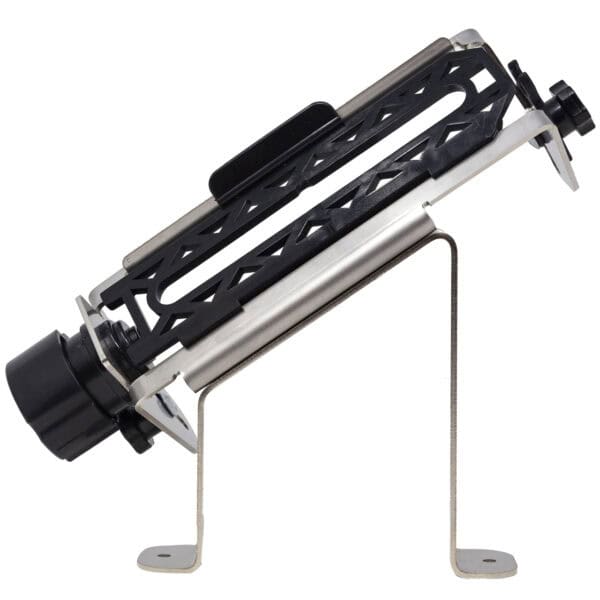

Multi-Fletcher Jig 601055

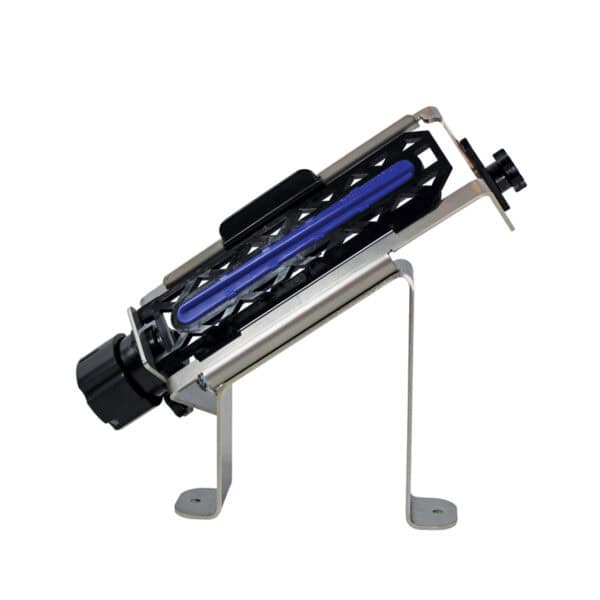

Bohning’s Multi-Fletcher® Jig will truly do it all! Every Multi-Fletcher® includes 7 color-coded clamp inserts for different angles, from straight up to a 3° right or left helical. It works with all arrow diameters from X10s to 27s. The Multi-Fletcher® can do a 3 or 4 fletch and will accommodate arrows with standard nocks or x-bow bolts. The rugged 16-gauge stainless steel base and durable composite clamps can be cleaned with acetone to remove adhesive residue. The unique snap-lock clamp plate with inserts provide superior adhesion force and consistent angles, and the feather inserts are specially designed to avoid damage to feathers.

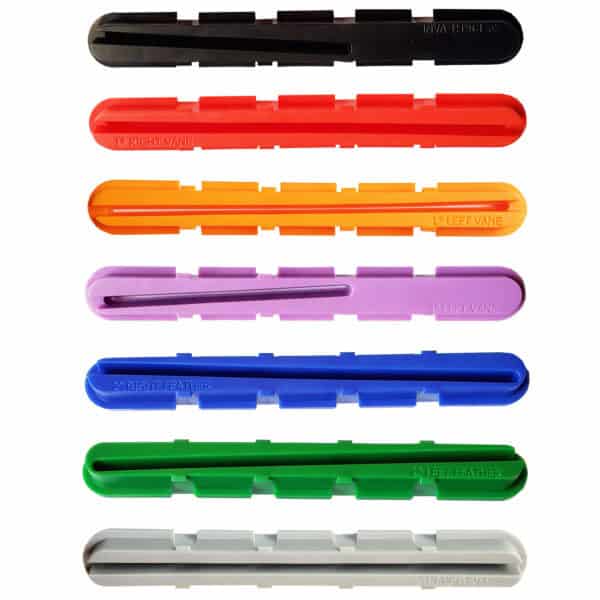

7 clamp inserts:
• Feather 2° Right & 2° Left. Max feather length 5″ (127mm)
• Vane 1° Right & 1° Left. Max vane length 5″ (127mm)
• Vane 3° Right & 3° Left. Max vane length 3″ (76mm)
• Vane Straight. Max vane length 5″ (127mm)

3 Fletch: 120°
4 Fletch: 90° or 60°x120°

The stainless steel base can be screwed to a work table as a single unit or as a multiple jig arrangement.

U.S. Patent 8,286,953 B2
